AP5000 Series Power Management

AP5000 Series Power Consumption Widget

ExtremeCloud IQ Controller offers a power consumption widget for the AP5000 series access points. This widget offers a visual display of the power consumption for the AP over the display period.

To access the Power Consumption widget:
  1. Go to Monitor > Devices > Access Points.
  2. Select an access point from the Access Points List.
  3. To edit the AP dashboard, select .
  4. Select Widgets > Power > Power Consumption.
  5. Drag the Power Consumption widget icon onto the dashboard.
Click to expand in new window

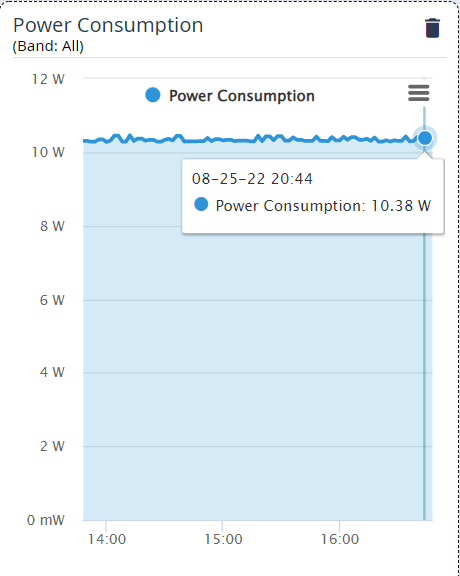

AP5010 Power Consumption Widget
AP5010 Power Consumption Widget

AP5010 Power Source Feature Restrictions

Depending on the power source that is reported to ExtremeCloud IQ Controller, the AP5010 has the following restrictions.
Table 1. AP5010 feature restrictions related to the power source provided to the AP
Power Status High Normal Low Normal
Power Source 802.3BT 802.3AT 802.3AF Power Supply
PSE= OFF OFF OFF OFF

All 3 Radios operate 2x2

Maximum Tx 10 dBm		 OFF
PSE=Auto ON OFF OFF OFF
USB=OFF OFF OFF OFF
USB=Auto ON ON

All 3 Radios operate 3x3

OFF ON

All 3 Radios operate 4x4

AP5020 Power Source Information

The AP5020 power values differ from other 5000 series APs and legacy APs. The most restrictive power connection is listed instead of the highest level power connection. This is to support AP power redundancy. The level of service provided does not change if any of the power connections fails.

AP5050 Power Source Information

The AP5050U and AP5050D access points do not include a USB port or an external power supply. These outdoor access points operate on standard power.

Table 2. AP5050 power source provided to the AP
Power Status High Normal
Power Source 802.3BT 802.3AT
PSE= OFF OFF OFF
PSE=Auto ON OFF
